LenovoGaming laptop

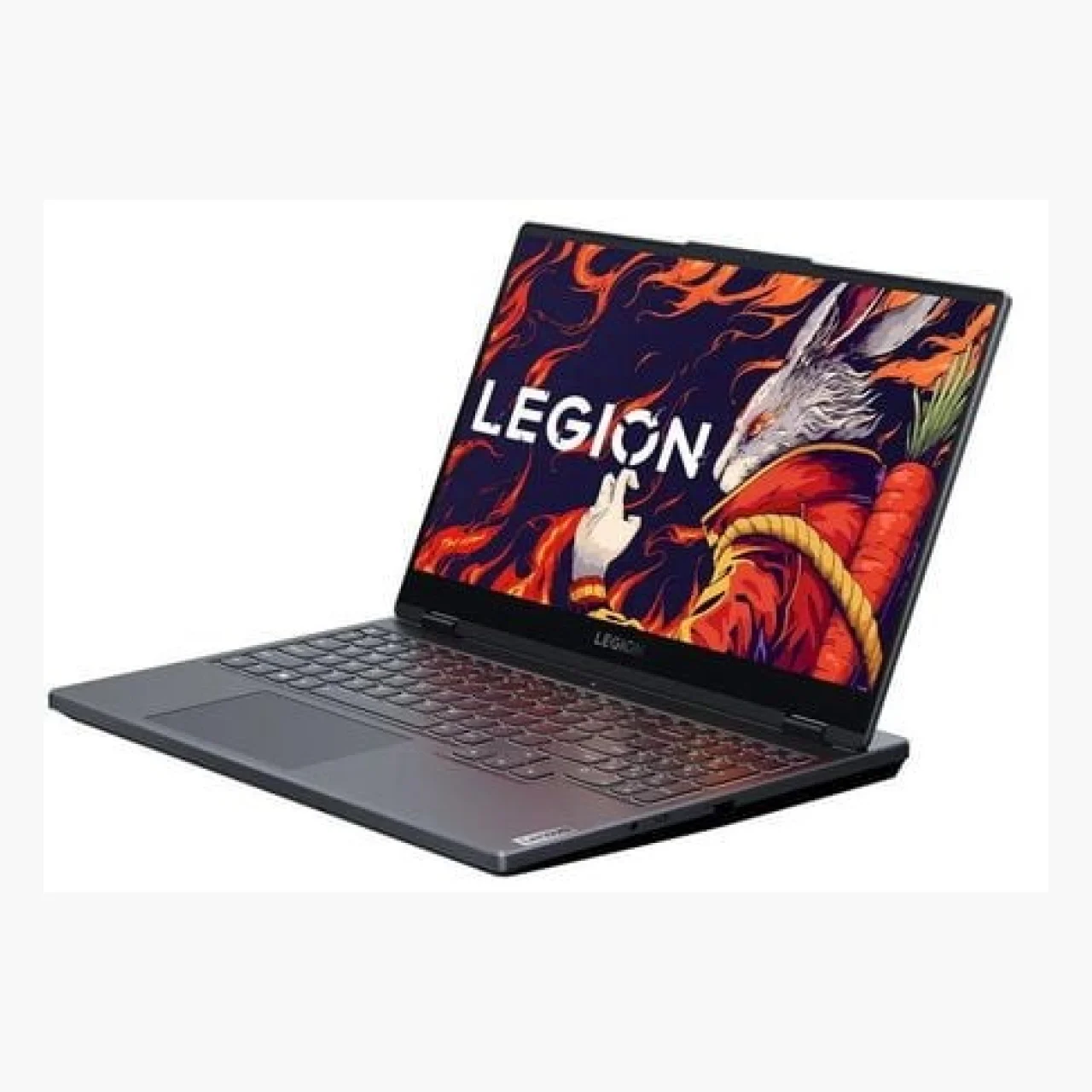

Lenovo Legion 5 15ARP8 RTX 4060 (2023)
Lenovo Legion 5 15ARP8 RTX 4060 (2023) is a gaming laptop released in January 2023. Key specs: graphics card GeForce RTX 4060 Laptop, GPU power (TGP) 140 W, processor Ryzen 7 7735HS, screen size 15.6″.
7.8Score
Graphics6.3
Overall performance5.9
Display8.7
Memory & storage8.6
Battery & portability6.6
Features & cooling4.1
price range—
- Released
- January 2023
- Type
- Gaming laptop
- Brand
Lenovo- Popularity
- #1,459 of 1,575
- Series
- Lenovo Legion 5 · 6 generations
- Model numbers
- 15ARP8
GeForce RTX 4060 LaptopGraphics card
140 WGPU power (TGP)
Ryzen 7 7735HSProcessor
15.6″Screen size
165 HzRefresh rate
64 GBRAM (up to)
80 WhBattery capacity
2.4 kgWeight
Spec guide
How it ranks among gaming laptops of 2023
GPU power (TGP) · 140 WTop 33%Screen size · 15.6″Bottom 22%Refresh rate · 165 HzTop 33%RAM (up to) · 64 GBTop 24%Battery capacity · 80 WhBottom 34%Weight · 2.4 kgTop 46%
Compared with gaming laptops released in 2023. Bars show the share of models it beats.
compared with other gaming laptops
Why is Legion 5 15ARP8 RTX 4060 (2023) a good choice?
GPU power (TGP): 140 Wbetter than 71% of gaming laptops
RAM (up to): 64 GBbetter than 72% of gaming laptops
SSD (up to): 4,096 GBbetter than 81% of gaming laptops
Brightness: 350 nitsbetter than 71% of gaming laptops
Specifications
Full specifications
Graphics
- GPU maker
- NVIDIA
- GPU power (TGP)
- 140 W
- Video memory
- 8 GB
- GPU shader cores
- 3,072
- GPU compute (FP32)
- 16 TFLOPS
- 3DMark Steel Nomad Light
- 10,487
Processor
- CPU maker
- AMD
- CPU cores
- 8
- CPU threads
- 16
- Max CPU clock
- 4.8 GHz
- Processor options
- Ryzen 7 7735HS
- Geekbench 6 multi-core
- 10,140
- Geekbench 6 single-core
- 2,153
- Cinebench 2024 multi-core
- 738
Display
- Screen size
- 15.6″
- Resolution
- 2560 × 1440
- Refresh rate
- 165 Hz
- Brightness
- 350 nits
- sRGB coverage
- 100%
- Response time
- 3 ms
- Pixel density
- 188 ppi
- Aspect ratio
- 16:9
- G-Sync / FreeSync
- Yes
- Advanced Optimus
- Yes
- MUX switch
- Yes
- HDR
- Yes
- Touchscreen
- No
Memory & storage
- RAM (up to)
- 64 GB
- RAM (base)
- 8 GB
- RAM speed
- 4,800 MHz
- Max. supported RAM
- 64 GB
- RAM slots
- 2
- Upgradable RAM
- Yes
- SSD (up to)
- 4,096 GB
- SSD (base)
- 512 GB
- M.2 SSD slots
- 2
- SSD interface
- PCIe 4.0 x4
Battery & power
- Battery capacity
- 80 Wh
- Power adapter
- 230 W
- USB-C charging (Power Delivery)
- Yes
Design & cooling
- Weight
- 2.4 kg
- Thickness
- 24.1 mm
- Width
- 358.8 mm
- Depth
- 262.4 mm
- Body material
- Aluminium, Plastic
- Colours
- Black, Gray
- Cooling fans
- 2
- Vapor chamber cooling
- No
- Liquid metal (CPU)
- No
Ports & wireless
- Thunderbolt or USB4
- No
- USB-C ports
- 2
- USB-A ports
- 3
- HDMI
- HDMI 2.1
- HDMI 2.1
- Yes
- (Mini) DisplayPort
- No
- Ethernet port
- Yes
- SD card reader
- No
- 3.5 mm audio jack
- Yes
- Wi-Fi standard
- Wi-Fi 6
- Bluetooth
- 5.2
Keyboard & camera
- Backlit keyboard
- Yes
- Numeric keypad
- Yes
- Key travel
- 1.5 mm
- Webcam
- 720p
- IR camera (face login)
- No
- Fingerprint reader
- No
Audio
- Speakers
- 2.0
- Dolby Atmos
- No
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
