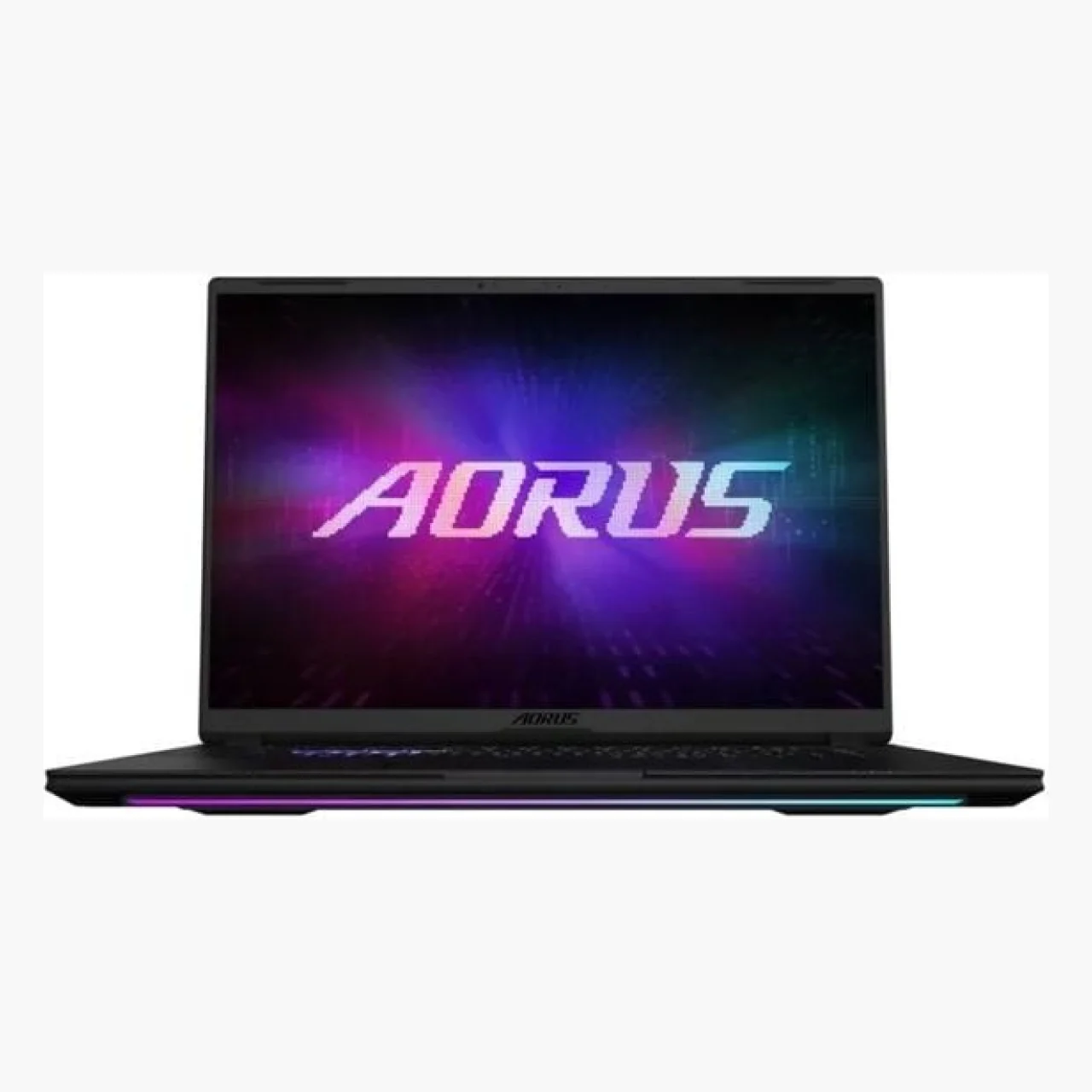

Gigabyte Aorus Master 16 AM6J RTX 5090 (2026)
Gigabyte Aorus Master 16 AM6J RTX 5090 (2026) is a gaming laptop released in January 2026. Key specs: graphics card GeForce RTX 5090 Laptop, GPU power (TGP) 175 W, processor Ryzen 9 8940HX, screen size 16″.
9.7Score
Graphics9.8
Overall performance9.4
Display9.5
Memory & storage8.6
Battery & portability9.4
Features & cooling9.4
price range$5,300–6,500Reference price converted from JPY
- Released
- January 2026
- Type
- Gaming laptop
- Brand
Gigabyte- Popularity
- #464 of 1,575
GeForce RTX 5090 LaptopGraphics card
175 WGPU power (TGP)
Ryzen 9 8940HXProcessor
16″Screen size
165 HzRefresh rate
64 GBRAM (up to)
99 WhBattery capacity
2.3 kgWeight
Spec guide
How it ranks among gaming laptops of 2026
GPU power (TGP) · 175 WTop 14%Screen size · 16″Top 49%Refresh rate · 165 HzBottom 35%RAM (up to) · 64 GBTop 38%Battery capacity · 99 WhTop 11%Weight · 2.3 kgTop 48%
Compared with gaming laptops released in 2026. Bars show the share of models it beats.
compared with other gaming laptops
Why is Aorus Master 16 AM6J RTX 5090 (2026) a good choice?
GPU power (TGP): 175 Wbetter than 95% of gaming laptops
Battery capacity: 99 Whbetter than 89% of gaming laptops
3DMark Steel Nomad Light: 29,961better than 99% of gaming laptops
Geekbench 6 multi-core: 16,188better than 86% of gaming laptops
Video memory: 24 GBbetter than 98% of gaming laptops
Brightness: 500 nitsbetter than 88% of gaming laptops
RAM (up to): 64 GBbetter than 72% of gaming laptops
CPU cores: 16better than 81% of gaming laptops
Specifications
Full specifications
Graphics
- GPU maker
- NVIDIA
- GPU power (TGP)
- 175 W
- Video memory
- 24 GB
- GPU shader cores
- 10,496
- GPU compute (FP32)
- 51.4 TFLOPS
- 3DMark Steel Nomad Light
- 29,961
Processor
- CPU maker
- AMD
- CPU cores
- 16
- CPU threads
- 32
- Max CPU clock
- 5.3 GHz
- Processor options
- Ryzen 9 8940HX, Ryzen 9 9955HX3D, Ryzen 9 9955HX
- Geekbench 6 multi-core
- 16,188
- Geekbench 6 single-core
- 2,874
- Cinebench 2024 multi-core
- 1,706
Display
- Screen size
- 16″
- Resolution
- 2560 × 1600
- Refresh rate
- 165 Hz
- Brightness
- 500 nits
- Response time
- 1 ms
- DCI-P3 coverage
- 100%
- Pixel density
- 189 ppi
- Aspect ratio
- 16:10
- G-Sync / FreeSync
- Yes
- Advanced Optimus
- No
- MUX switch
- Yes
- HDR
- Yes
- Touchscreen
- No
Memory & storage
- RAM (up to)
- 64 GB
- RAM (base)
- 16 GB
- RAM speed
- 5,600 MHz
- Max. supported RAM
- 64 GB
- RAM slots
- 2
- Upgradable RAM
- Yes
- SSD (up to)
- 4,096 GB
- SSD (base)
- 512 GB
- M.2 SSD slots
- 2
- SSD interface
- PCIe 5.0 x4
Battery & power
- Battery capacity
- 99 Wh
- Power adapter
- 330 W
- USB-C charging (Power Delivery)
- Yes
Design & cooling
- Weight
- 2.3 kg
- Thickness
- 24.5 mm
- Width
- 357.2 mm
- Depth
- 255.3 mm
- Body material
- Aluminium, Plastic
- Colours
- Black
- Cooling fans
- 2
- Vapor chamber cooling
- Yes
- Liquid metal (CPU)
- No
- Fan noise (max. load)
- 60 dB
Ports & wireless
- Thunderbolt or USB4
- Yes
- USB-C ports
- 2
- USB-A ports
- 2
- HDMI
- HDMI 2.1
- HDMI 2.1
- Yes
- (Mini) DisplayPort
- Yes
- Ethernet port
- Yes
- SD card reader
- Yes
- 3.5 mm audio jack
- Yes
- Wi-Fi standard
- Wi-Fi 7
- Bluetooth
- 5.4
Keyboard & camera
- Backlit keyboard
- Yes
- Numeric keypad
- No
- Key travel
- 1.7 mm
- Webcam
- 1,080p
- IR camera (face login)
- Yes
- Fingerprint reader
- No
Audio
- Speakers
- 2.0
- Dolby Atmos
- Yes
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
