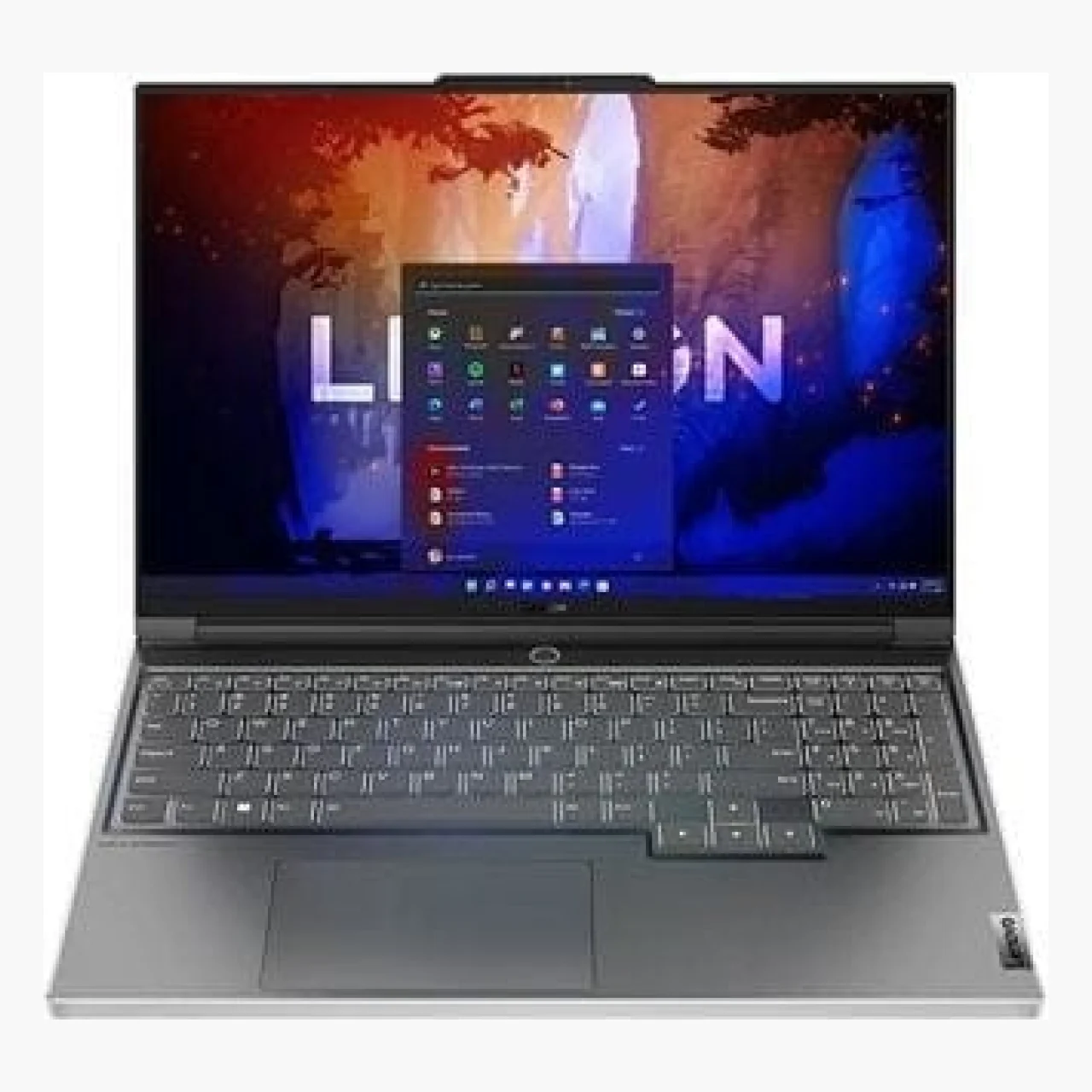

Lenovo Legion Slim 7 Gen 8 AMD RX 6800S (2023)
LenovoThin gaming laptop

Lenovo Legion Slim 7 Gen 8 AMD RX 6800S (2023)

Lenovo Legion Slim 7 Gen 8 AMD RX 6800S (2023) is a thin gaming laptop released in June 2023. Key specs: graphics card Radeon RX 6800S, GPU power (TGP) 100 W, processor Ryzen 5 6600H, screen size 16″.

5.2Score
Graphics3.8
Overall performance2.9
Display4.8
Memory & storage6.5
Battery & portability8.0
Features & cooling5.2
price range—
Full specifications
Released
June 2023
Brand
LenovoLenovo
Popularity
#968 of 1,608
Radeon RX 6800SGraphics card
100 WGPU power (TGP)
Ryzen 5 6600HProcessor
16″Screen size
165 HzRefresh rate
32 GBRAM (up to)
100 WhBattery capacity
2 kgWeight
Spec guide

How it ranks among thin gaming laptops of 2023

Spec guide
GPU power (TGP) · 100 WBottom 30%Screen size · 16″Top 49%Refresh rate · 165 HzTop 32%RAM (up to) · 32 GBBottom 31%Battery capacity · 100 WhTop 6%Weight · 2 kgTop 17%

Compared with thin gaming laptops released in 2023. Bars show the share of models it beats.

compared with other thin gaming laptops

Why is Legion Slim 7 Gen 8 AMD RX 6800S (2023) a good choice?

Battery capacity: 100 Whbetter than 94% of thin gaming laptops
SSD (up to): 4,096 GBbetter than 82% of thin gaming laptops
Screen size: 16″better than 71% of thin gaming laptops
Weak points
RAM (up to): 32 GBworse than 87% of thin gaming laptops
Video memory: 8 GBworse than 76% of thin gaming laptops
CPU cores: 6worse than 96% of thin gaming laptops
Geekbench 6 multi-core: 8,810worse than 82% of thin gaming laptops
Specifications

Full specifications

Graphics
Graphics card
Radeon RX 6800S
GPU maker
AMD
GPU power (TGP)
100 W
Video memory
8 GB
Video memory type
GDDR6
GPU shader cores
2,048
GPU compute (FP32)
8.1 TFLOPS
3DMark Steel Nomad Light
8,245
Processor
Processor
Ryzen 5 6600H
CPU maker
AMD
CPU cores
6
CPU threads
12
Max CPU clock
4.5 GHz
Processor options
Ryzen 5 6600H, Ryzen 7 6800H, Ryzen 7 7840HS, Ryzen 9 6900HX
Geekbench 6 multi-core
8,810
Geekbench 6 single-core
2,023
Cinebench 2024 multi-core
568
Display
Screen size
16″
Resolution
1920 × 1200
Resolution class
Full HD (1080p/1200p)
Refresh rate
165 Hz
Panel type
IPS
Brightness
350 nits
sRGB coverage
99%
Pixel density
142 ppi
Aspect ratio
16:10
G-Sync / FreeSync
Yes
Advanced Optimus
No
MUX switch
Yes
HDR
Yes
Touchscreen
No
Memory & storage
RAM (up to)
32 GB
RAM (base)
8 GB
RAM type
DDR5
RAM speed
5,600 MHz
Max. supported RAM
32 GB
RAM slots
1
Upgradable RAM
Yes
SSD (up to)
4,096 GB
SSD (base)
512 GB
M.2 SSD slots
2
SSD interface
PCIe 4.0 x4
Battery & power
Battery capacity
100 Wh
Power adapter
230 W
USB-C charging (Power Delivery)
Yes
Design & cooling
Weight
2 kg
Thickness
19.9 mm
Width
357.7 mm
Depth
259.3 mm
Body material
Aluminium
Colours
White, Gray
Cooling fans
2
Vapor chamber cooling
No
Liquid metal (CPU)
No
Fan noise (max. load)
51.3 dB
Ports & wireless
Thunderbolt / USB4
USB4
Thunderbolt or USB4
Yes
USB-C ports
2
USB-A ports
2
HDMI
HDMI 2.1
HDMI 2.1
Yes
(Mini) DisplayPort
No
Ethernet port
No
SD card reader
Yes
3.5 mm audio jack
Yes
Wi-Fi standard
Wi-Fi 6E
Bluetooth
5.3
Keyboard & camera
Backlit keyboard
Yes
Numeric keypad
Yes
Key travel
1.5 mm
Webcam
1,080p
IR camera (face login)
No
Fingerprint reader
Yes
Audio
Speakers
2.0
Dolby Atmos
No

Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
