vs
5.0Graphics7.0
7.7Overall performance8.5
9.3Display5.5
4.4Memory & storage9.3
5.9Battery & portability4.1
8.6Features & cooling4.8
Dimensions
Size comparison

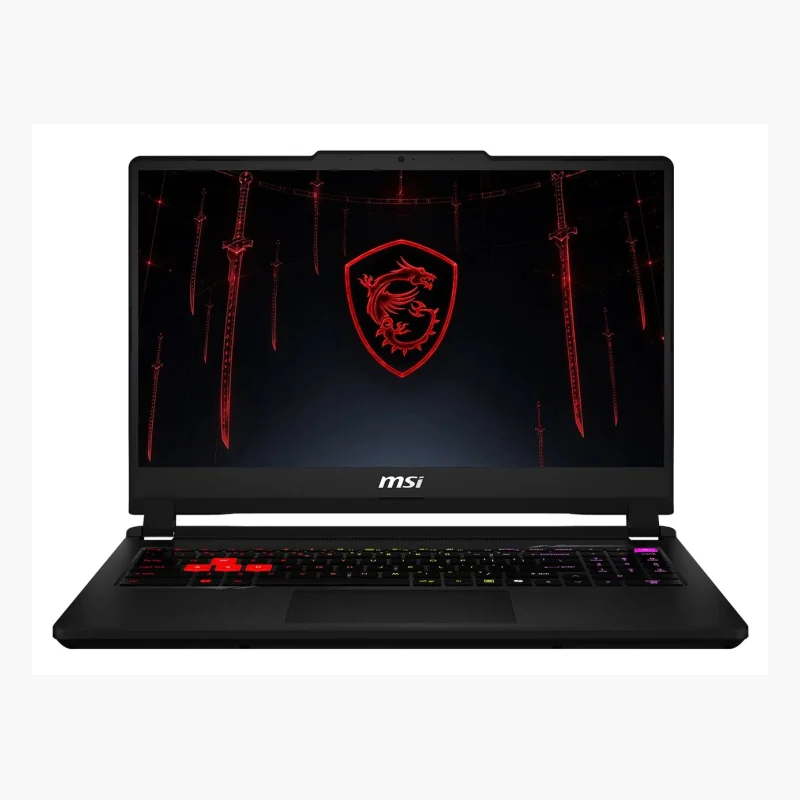

Omen Max 16 RTX 5060 (2025)Katana 15 HX C14 RTX 5060 (2026)
| Omen Max 16 RTX 5060 (2025) | Katana 15 HX C14 RTX 5060 (2026) | Difference | |
|---|---|---|---|
| Depth | 269 mm | 262 mm | +7 mm |
| Width | 357 mm | 359 mm | −2 mm |
| Thickness | 23 mm | 25.5 mm | −2.5 mm |
| Weight | 2.7 kg | 2.4 kg | +0.3 kg |
Drawn to the same scale from the official dimensions (front and side).
Why is Omen Max 16 RTX 5060 (2025) better than Katana 15 HX C14 RTX 5060 (2026)?
- Battery capacity83 Wh vs 60 Wh+38%
- Refresh rate240 Hz vs 144 Hz+67%
- Resolution classQHD (1440p/1600p) vs Full HD (1080p/1200p)
- Panel typeOLED vs IPS
- Thunderbolt or USB4Yes · Katana 15 HX C14 RTX 5060 (2026): No
- Cinebench 2024 multi-core1,925 vs 1,054+83%
- Brightness500 nits vs 300 nits+67%
- Geekbench 6 multi-core19,492 vs 16,028+22%
- CPU cores20 vs 16+25%
- RAM (base)32 GB vs 16 GB2×
- Vapor chamber coolingYes · Katana 15 HX C14 RTX 5060 (2026): No
- Liquid metal (CPU)Yes · Katana 15 HX C14 RTX 5060 (2026): No
Why is Katana 15 HX C14 RTX 5060 (2026) better than Omen Max 16 RTX 5060 (2025)?
- RAM (up to)32 GB vs 96 GB3×
- GPU compute (FP32)9.7 TFLOPS vs 18.4 TFLOPS+90%
- SSD (up to)1,000 GB vs 2,048 GB2×
- 3DMark Steel Nomad Light9,516 vs 13,079+37%
- Weight2.68 kg vs 2.4 kg+12%
- Max. supported RAM64 GB vs 96 GB+50%
- USB-A ports2 vs 3+50%
- CPU threads20 vs 24+20%
- Key travel1.5 mm vs 1.7 mm+13%
Specifications
Side by side
| Graphics | ||
| Graphics card | GeForce RTX 5060 Laptop | GeForce RTX 5060 Laptop |
| GPU maker | NVIDIA | NVIDIA |
| GPU power (TGP) | — | 115 W |
| Video memory | 8 GB | 8 GB |
| Video memory type | GDDR7 | GDDR7 |
| GPU shader cores | 3,328 | 3,328 |
| GPU compute (FP32) | 9.7 TFLOPS | 18.4 TFLOPS |
| 3DMark Steel Nomad Light | 9,516 | 13,079 |
| Processor | ||
| Processor | Core Ultra 7 255HX | Core i7-14650HX |
| CPU maker | Intel | Intel |
| CPU cores | 20 | 16 |
| CPU threads | 20 | 24 |
| Max CPU clock | 5.2 GHz | 5.2 GHz |
| Processor options | Ryzen AI 7 350, Core Ultra 7 255HX, Ryzen AI 9 HX 375, Core Ultra 9 275HX | Core i7-14650HX, Core i9-14900HX |
| Geekbench 6 multi-core | 19,492 | 16,028 |
| Geekbench 6 single-core | 3,115 | 2,730 |
| Cinebench 2024 multi-core | 1,925 | 1,054 |
| Display | ||
| Screen size | 16″ | 15.6″ |
| Resolution | 2560 × 1600 | 1920 × 1080 |
| Resolution class | QHD (1440p/1600p) | Full HD (1080p/1200p) |
| Refresh rate | 240 Hz | 144 Hz |
| Panel type | OLED | IPS |
| Brightness | 500 nits | 300 nits |
| sRGB coverage | 100% | 100% |
| Response time | 3 ms | — |
| Pixel density | 142 ppi | 141 ppi |
| Aspect ratio | 16:10 | 16:9 |
| G-Sync / FreeSync | Yes | — |
| Advanced Optimus | No | No |
| MUX switch | Yes | Yes |
| HDR | No | No |
| Touchscreen | No | No |
| Memory & storage | ||
| RAM (up to) | 32 GB | 96 GB |
| RAM (base) | 32 GB | 16 GB |
| RAM type | DDR5 | DDR5 |
| RAM speed | 5,600 MHz | 5,600 MHz |
| Max. supported RAM | 64 GB | 96 GB |
| RAM slots | 2 | 2 |
| Upgradable RAM | Yes | Yes |
| SSD (up to) | 1,000 GB | 2,048 GB |
| SSD (base) | 1,000 GB | 512 GB |
| M.2 SSD slots | 2 | 2 |
| SSD interface | PCIe 4.0 x4 | PCIe 4.0 x4 |
| Battery & power | ||
| Battery capacity | 83 Wh | 60 Wh |
| Power adapter | 330 W | 240 W |
| USB-C charging (Power Delivery) | Yes | Yes |
| Design & cooling | ||
| Weight | 2.68 kg | 2.4 kg |
| Thickness | 23 mm | 25.5 mm |
| Width | 357 mm | 359 mm |
| Depth | 269 mm | 262 mm |
| Body material | Aluminium, Plastic | Plastic |
| Colours | Black | Black |
| Cooling fans | 2 | 2 |
| Vapor chamber cooling | Yes | No |
| Liquid metal (CPU) | Yes | No |
| Fan noise (max. load) | 61.1 dB | — |
| Ports & wireless | ||
| Thunderbolt / USB4 | Thunderbolt 4 | — |
| Thunderbolt or USB4 | Yes | No |
| USB-C ports | 2 | 1 |
| USB-A ports | 2 | 3 |
| HDMI | HDMI 2.1 | HDMI 2.1 |
| HDMI 2.1 | Yes | Yes |
| (Mini) DisplayPort | No | No |
| Ethernet | 5 Gbit/s | — |
| Ethernet port | Yes | Yes |
| SD card reader | No | No |
| 3.5 mm audio jack | Yes | Yes |
| Wi-Fi standard | Wi-Fi 7 | Wi-Fi 6E |
| Bluetooth | 5.4 | 5.4 |
| Keyboard & camera | ||
| Keyboard backlight | — | Zone RGB |
| Per-key RGB | — | No |
| Backlit keyboard | Yes | Yes |
| Numeric keypad | Yes | Yes |
| Key travel | 1.5 mm | 1.7 mm |
| Webcam | 1,080p | 720p |
| IR camera (face login) | — | No |
| Fingerprint reader | No | No |
| Audio | ||
| Speakers | 2 speakers | 2.0 |
| Dolby Atmos | No | No |
