vs
6.5Graphics7.0
7.3Overall performance5.8
3.5Display4.6
4.9Memory & storage7.4
6.1Battery & portability5.3
6.1Features & cooling4.1
Dimensions
Size comparison

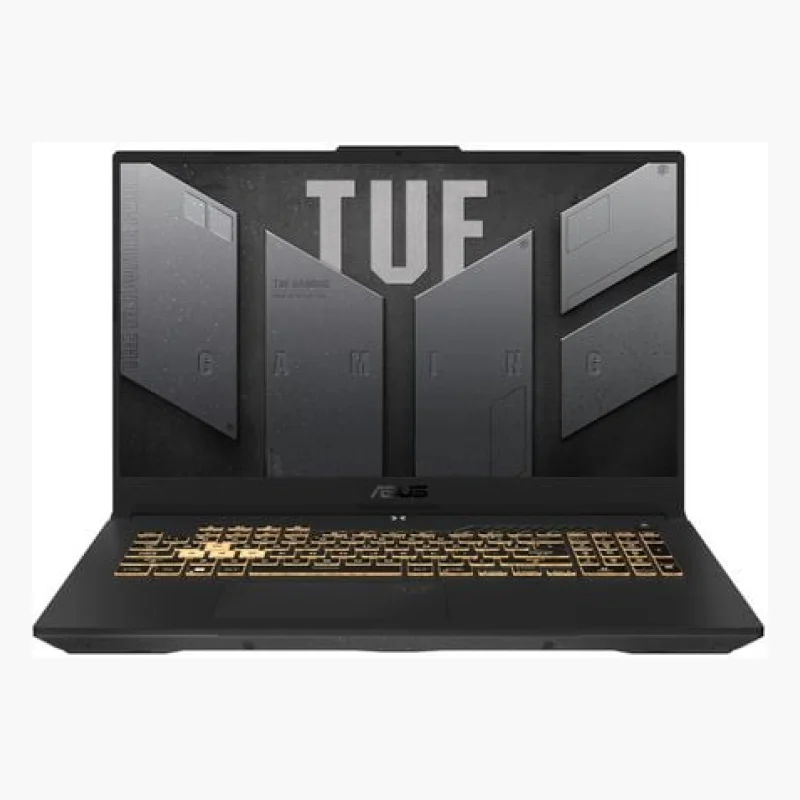

TUF Gaming F17 RTX 4060 (2023)Sword 15 RTX 4070 (2023)
| TUF Gaming F17 RTX 4060 (2023) | Sword 15 RTX 4070 (2023) | Difference | |
|---|---|---|---|
| Depth | 264 mm | 259 mm | +5 mm |
| Width | 394 mm | 359 mm | +35 mm |
| Thickness | 25.4 mm | 24.9 mm | +0.5 mm |
| Weight | 2.6 kg | 2.2 kg | +0.4 kg |
Drawn to the same scale from the official dimensions (front and side).
Why is TUF Gaming F17 RTX 4060 (2023) better than Sword 15 RTX 4070 (2023)?
- Battery capacity90 Wh vs 54 Wh+68%
- GPU power (TGP)140 W vs 105 W+33%
- Thunderbolt or USB4Yes · Sword 15 RTX 4070 (2023): No
- Cinebench 2024 multi-core1,106 vs 610+81%
- CPU cores14 vs 8+75%
- Geekbench 6 multi-core11,765 vs 9,633+22%
- USB-C ports2 vs 12×
- Dolby AtmosYes · Sword 15 RTX 4070 (2023): No
- CPU threads20 vs 12+67%
- Screen size17.3″ vs 15.6″+11%
- Geekbench 6 single-core2,501 vs 2,279+10%
- Max CPU clock4.7 GHz vs 4.4 GHz+7%
Why is Sword 15 RTX 4070 (2023) better than TUF Gaming F17 RTX 4060 (2023)?
- RAM (up to)32 GB vs 64 GB2×
- Weight2.6 kg vs 2.25 kg+16%
- 3DMark Steel Nomad Light11,337 vs 12,954+14%
- GPU compute (FP32)16 TFLOPS vs 18.2 TFLOPS+14%
- GPU shader cores3,072 vs 4,608+50%
- Advanced OptimusNo · TUF Gaming F17 RTX 4060 (2023): Yes
- RAM (base)8 GB vs 16 GB2×
- Max. supported RAM32 GB vs 64 GB2×
- Brightness250 nits vs 300 nits+20%
- USB-A ports2 vs 3+50%
- Pixel density127 ppi vs 141 ppi+11%
- RAM speed4,800 MHz vs 5,200 MHz+8%
Specifications
Side by side
| Graphics | ||
| Graphics card | GeForce RTX 4060 Laptop | GeForce RTX 4070 Laptop |
| GPU maker | NVIDIA | NVIDIA |
| GPU power (TGP) | 140 W | 105 W |
| Video memory | 8 GB | 8 GB |
| Video memory type | GDDR6 | GDDR6 |
| GPU shader cores | 3,072 | 4,608 |
| GPU compute (FP32) | 16 TFLOPS | 18.2 TFLOPS |
| 3DMark Steel Nomad Light | 11,337 | 12,954 |
| Processor | ||
| Processor | Core i7-12700H | Core i5-12450H |
| CPU maker | Intel | Intel |
| CPU cores | 14 | 8 |
| CPU threads | 20 | 12 |
| Max CPU clock | 4.7 GHz | 4.4 GHz |
| Processor options | Core i7-12700H, Core i7-13620H, Core i7-13700H, Core i9-13900H | Core i5-12450H, Core i5-12500H, Core i7-12650H, Core i7-12700H, Core i7-13620H, Core i9-12900H |
| Geekbench 6 multi-core | 11,765 | 9,633 |
| Geekbench 6 single-core | 2,501 | 2,279 |
| Cinebench 2024 multi-core | 1,106 | 610 |
| Display | ||
| Screen size | 17.3″ | 15.6″ |
| Resolution | 1920 × 1080 | 1920 × 1080 |
| Resolution class | Full HD (1080p/1200p) | Full HD (1080p/1200p) |
| Refresh rate | 144 Hz | 144 Hz |
| Panel type | IPS | IPS |
| Brightness | 250 nits | 300 nits |
| sRGB coverage | 62% | — |
| Response time | 7 ms | — |
| DCI-P3 coverage | 100% | — |
| Pixel density | 127 ppi | 141 ppi |
| Aspect ratio | 16:9 | 16:9 |
| G-Sync / FreeSync | Yes | — |
| Advanced Optimus | No | Yes |
| MUX switch | Yes | Yes |
| HDR | No | No |
| Touchscreen | No | No |
| Memory & storage | ||
| RAM (up to) | 32 GB | 64 GB |
| RAM (base) | 8 GB | 16 GB |
| RAM type | DDR5 | DDR5 |
| RAM speed | 4,800 MHz | 5,200 MHz |
| Max. supported RAM | 32 GB | 64 GB |
| RAM slots | 2 | 2 |
| Upgradable RAM | Yes | Yes |
| SSD (up to) | 2,048 GB | 2,048 GB |
| SSD (base) | 512 GB | 512 GB |
| M.2 SSD slots | 2 | 2 |
| SSD interface | PCIe 4.0 x4 | PCIe 4.0 x4 |
| Battery & power | ||
| Battery capacity | 90 Wh | 54 Wh |
| Power adapter | 280 W | 240 W |
| USB-C charging (Power Delivery) | Yes | Yes |
| Design & cooling | ||
| Weight | 2.6 kg | 2.25 kg |
| Thickness | 25.4 mm | 24.9 mm |
| Width | 394 mm | 359 mm |
| Depth | 264 mm | 259 mm |
| Body material | Aluminium, Plastic | — |
| Colours | Gray | White |
| Cooling fans | 2 | 2 |
| Vapor chamber cooling | No | No |
| Liquid metal (CPU) | No | No |
| Ports & wireless | ||
| Thunderbolt / USB4 | Thunderbolt 4 | — |
| Thunderbolt or USB4 | Yes | No |
| USB-C ports | 2 | 1 |
| USB-A ports | 2 | 3 |
| HDMI | HDMI 2.1 | HDMI 2.1 |
| HDMI 2.1 | Yes | Yes |
| (Mini) DisplayPort | No | No |
| Ethernet port | Yes | Yes |
| SD card reader | No | No |
| 3.5 mm audio jack | Yes | Yes |
| Wi-Fi standard | Wi-Fi 6 | Wi-Fi 6 |
| Bluetooth | 5.3 | 5.2 |
| Keyboard & camera | ||
| Backlit keyboard | Yes | Yes |
| Numeric keypad | Yes | Yes |
| Key travel | 1.7 mm | — |
| Webcam | 720p | 720p |
| IR camera (face login) | No | No |
| Fingerprint reader | No | No |
| Audio | ||
| Speakers | 2.0 | 2.0 |
| Dolby Atmos | Yes | No |
