vs
2.7Display2.9
2.0Memory & storage5.8
9.1Battery & portability2.3
Dimensions
Size comparison

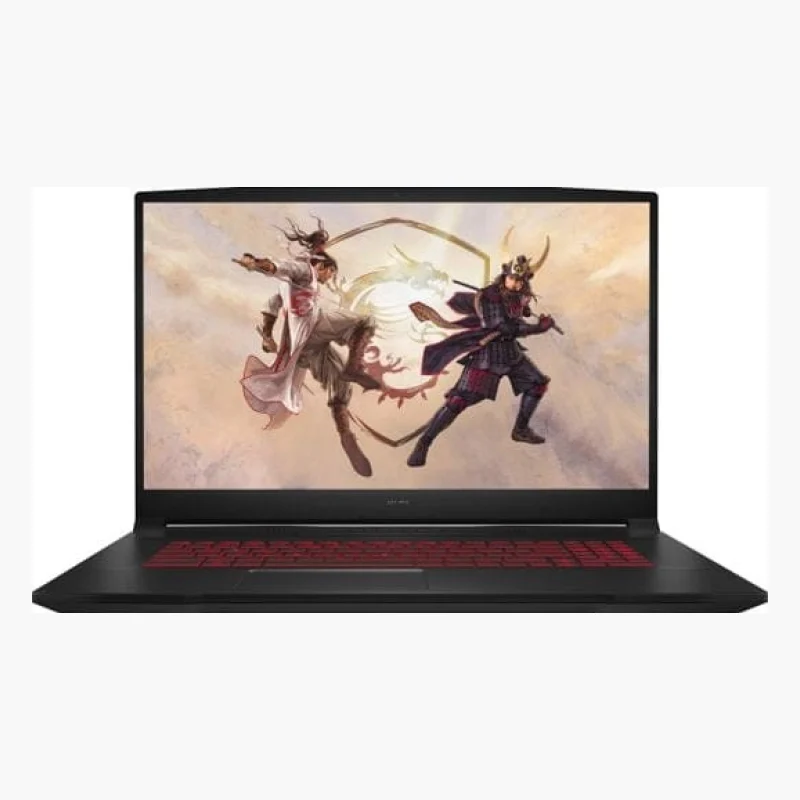

Nitro 5 AN517-52 RTX 3060 (2021)Katana GF76 RTX 3060 (2021)
| Nitro 5 AN517-52 RTX 3060 (2021) | Katana GF76 RTX 3060 (2021) | Difference | |
|---|---|---|---|
| Depth | 280 mm | 273 mm | +7 mm |
| Width | 404 mm | 398 mm | +6 mm |
| Thickness | 25 mm | 25.2 mm | −0.2 mm |
| Weight | 2.2 kg | 2.6 kg | −0.4 kg |
Drawn to the same scale from the official dimensions (front and side).
Why is Nitro 5 AN517-52 RTX 3060 (2021) better than Katana GF76 RTX 3060 (2021)?
- Weight2.2 kg vs 2.6 kg+18%
- Video memory8 GB vs 6 GB+33%
Why is Katana GF76 RTX 3060 (2021) better than Nitro 5 AN517-52 RTX 3060 (2021)?
- RAM (up to)8 GB vs 64 GB8×
- CPU cores4 vs 82×
- SSD (up to)512 GB vs 1,024 GB2×
- Refresh rate120 Hz vs 144 Hz+20%
- Bluetooth5 vs 5.2+4%
- Max CPU clock4.5 GHz vs 4.6 GHz+2%
Specifications
Side by side
| Graphics | ||
| Graphics card | GeForce RTX 3060 Laptop | GeForce RTX 3060 Laptop |
| GPU maker | NVIDIA | NVIDIA |
| GPU power (TGP) | — | 95 W |
| Video memory | 8 GB | 6 GB |
| Video memory type | — | GDDR6 |
| GPU shader cores | 3,840 | 3,840 |
| GPU compute (FP32) | — | 12 TFLOPS |
| 3DMark Steel Nomad Light | — | 8,662 |
| Processor | ||
| Processor | Core i5-10300H | Core i7-11800H |
| CPU maker | Intel | Intel |
| CPU cores | 4 | 8 |
| CPU threads | — | 16 |
| Max CPU clock | 4.5 GHz | 4.6 GHz |
| Processor options | — | Core i5-12500H, Core i7-11800H, Core i7-12700H |
| Geekbench 6 multi-core | — | 9,503 |
| Geekbench 6 single-core | — | 2,091 |
| Cinebench 2024 multi-core | — | 557 |
| Display | ||
| Screen size | 17.3″ | 17.3″ |
| Resolution | 1920 × 1080 | 1920 × 1080 |
| Resolution class | Full HD (1080p/1200p) | Full HD (1080p/1200p) |
| Refresh rate | 120 Hz | 144 Hz |
| Panel type | IPS | IPS |
| Brightness | — | 300 nits |
| sRGB coverage | — | 60% |
| Response time | — | 31 ms |
| DCI-P3 coverage | — | 40% |
| Pixel density | — | 127 ppi |
| Aspect ratio | 16:9 | 16:9 |
| Advanced Optimus | — | No |
| MUX switch | — | No |
| HDR | — | No |
| Touchscreen | — | No |
| Memory & storage | ||
| RAM (up to) | 8 GB | 64 GB |
| RAM (base) | 8 GB | 8 GB |
| RAM type | DDR4 | DDR4 |
| RAM speed | — | 3,200 MHz |
| Max. supported RAM | — | 64 GB |
| RAM slots | — | 2 |
| Upgradable RAM | — | Yes |
| SSD (up to) | 512 GB | 1,024 GB |
| SSD (base) | 512 GB | 512 GB |
| M.2 SSD slots | — | 2 |
| SSD interface | — | PCIe 3.0 x4 |
| Battery & power | ||
| Battery capacity | — | 54 Wh |
| Power adapter | 135 W | 240 W |
| USB-C charging (Power Delivery) | — | No |
| Design & cooling | ||
| Weight | 2.2 kg | 2.6 kg |
| Thickness | 25 mm | 25.2 mm |
| Width | 404 mm | 398 mm |
| Depth | 280 mm | 273 mm |
| Body material | — | Plastic |
| Colours | Black | Black |
| Cooling fans | — | 2 |
| Vapor chamber cooling | — | No |
| Fan noise (max. load) | — | 57 dB |
| Ports & wireless | ||
| Thunderbolt or USB4 | No | No |
| USB-C ports | — | 1 |
| USB-A ports | — | 3 |
| HDMI | — | HDMI 2.1 |
| HDMI 2.1 | — | Yes |
| (Mini) DisplayPort | — | No |
| Ethernet | 1 Gbit/s | — |
| Ethernet port | Yes | Yes |
| SD card reader | — | No |
| 3.5 mm audio jack | Yes | Yes |
| Wi-Fi standard | — | Wi-Fi 6 |
| Bluetooth | 5 | 5.2 |
| Keyboard & camera | ||
| Backlit keyboard | — | Yes |
| Numeric keypad | — | Yes |
| Key travel | — | 1.7 mm |
| Webcam | 720p | 720p |
| IR camera (face login) | — | No |
| Fingerprint reader | — | No |
| Audio | ||
| Speakers | — | 2.0 |
| Dolby Atmos | — | No |
